Jinan T packing machinery co.,ltd
Model | Machines | Qty | Price | Specification |

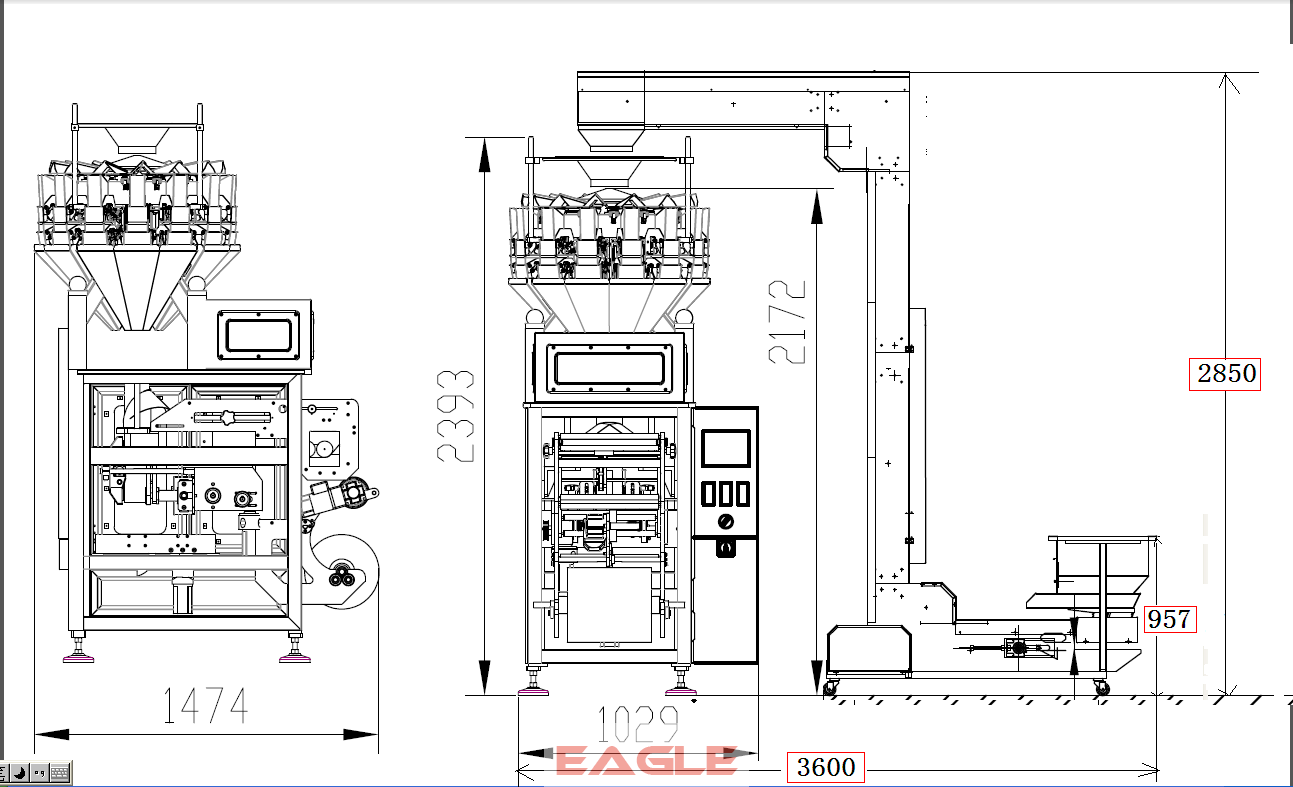

DP-420W Compack machine system | DP420W packing machine with 1.6L 10 heads scale | 1set | FOBQingdao 15,500USD | Speed : 10-55 bag/min (max) Bagsize:50-300L 80-200mm W Capacity : 100-1300ml Film thickness : 0.04-0.08mm Power : 4.5KW/220V 50-60HZ Max film: 420mm Machine weight : 700kg |
Z type material conveyer Includes Vibration feeder | 1set | |||
Finished package conveyer | 1set |

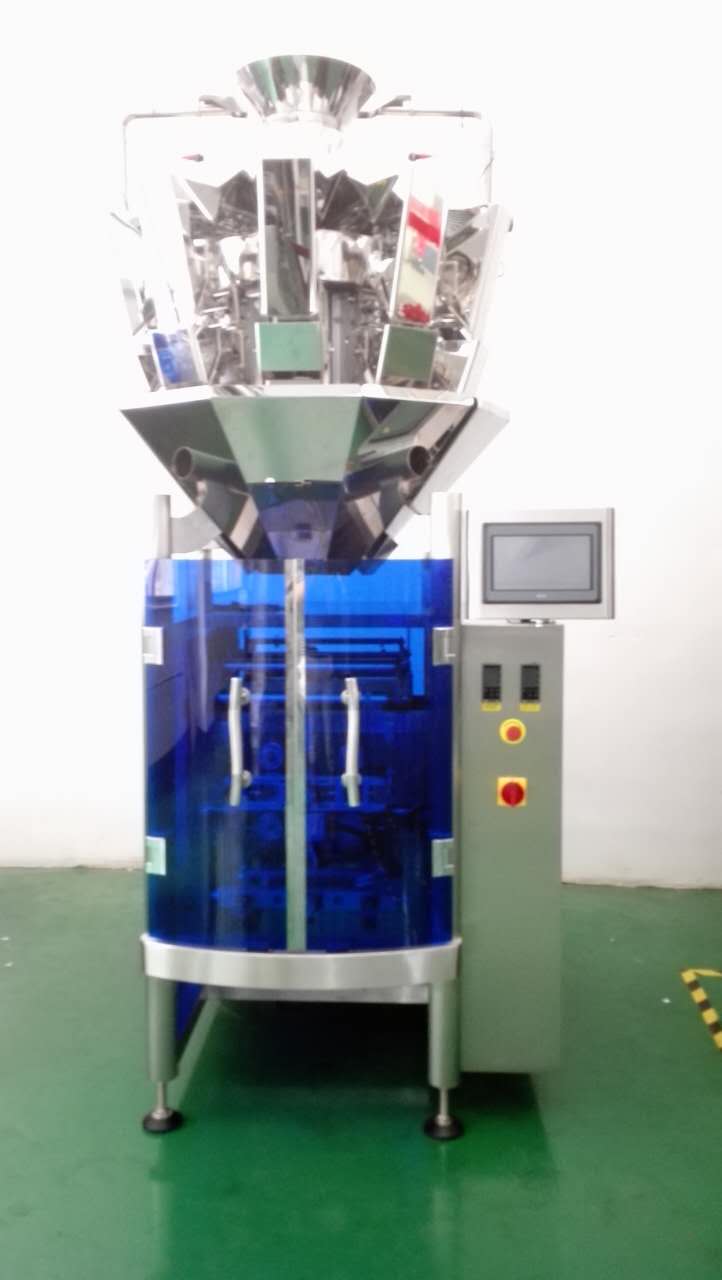

1. DP420W packing machine with 1.6L 10 heads scale
1、The structural feature
◆PLC control with touch panel-step by step instruction.
◆Equipped with servo winding system，pneumatic control system.
◆The maximize to improve the whole machine precision, reliability and stability.
◆use intellectual temperature controller，the high temperature control to ensure neat sealing.
◆the perfect automatic alarm safety protection，little waste. the machine will automatically complete all packaging processes from feeding, measuring, filling, Printing ,finished bag
2、Scope of application
It’s suitable to use in packing the high accuracy and easy fragile material , such as : Potato Chips ,crispy rice , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc .
3、 Specification：
Items | Content |
Packing speed | 5-60 bags / min |
Bag size | (W)80-200mm (L)80-300mm 两次拉膜长度可达400mm |
Bag making mode | Pillow-type bag, standing bag, punch device |
Range of measuring | MAX 1300ml |
The maximum width of packing film | 420mm |
Thickness of film | 0.04-0.08mm |
Air consumption | 0.6m3/Min 0.6Pa |
Main power/voltage | 4.5KW/220V 50-60Hz |
Dimension | 1300×1240×2600mm |
The weight of switchboard | 600kg |
10 Multihead weigher
1. Application:
*It is suitable for high speed weighing of granule, slice, roll or irregular shape products such as candy, seed, jelly, fries, coffee bean, peanut, puffy food, biscuit, chocolate, nut, yogurt, pet food & frozen foods, etc. It is also suitable for weighing small metal and plastic parts.
2. Features:
*Load cell level sensor control material feeding;
*No products Auto pause function can avoid material dropping out during Running;
*The single linear feeder amplitude can be auto/manual adjusted will ensure the products easy-flowing with high accuracy;
* Facility to maximize or minimize the operation angle to the size of the product.
* Multilanguage control panel, Spanish, Korea, German, French and Arabic, etc.
* High accuracy and high speed modes can be select.
3、Specifications:
Model | DP-A10 |
Max. Cap.(g) | 10-5000g |
Weighing Accuracy(g) | ±0.3-3.0g |
Max. Weighing Speed | 60WPM |
Hopper Volume | 1600ml |
Control Panel | 9. 7"Touch Screen |
Options | Dimple Plate/Timing Hopper/Printer/Rotary Top Cone |
Driving System | Step Motor |
Power Requirements | 220V / 1500W / 50/60HZ / 10A |
3）420包装机标准配置表 Neutral Equipments
NO. | 新 Name | Brand | Country |
1 | Touch sensitive screen 触摸屏 | 步科KINCO | 深圳步科（10.4寸触摸屏） |
2 | PLC 可编程控制器 | 三菱MUTISUBISH | 日本JAP |
3 | Servo motor拉膜伺服电机+驱动器 | 施耐德750W | 法国 |
4 | Horizontal cylinder横封气缸 | SMC | 日本JAP |
5 | Vertical cylinder竖封气缸 | SMC | 日本JAP |
6 | Cutting cylinder切刀气缸 | SMC | 日本JAP |
7 | Two units system二连体/气压表 | 亚德客AirTAC | 台湾TAIWAN |
8 | Film-run cylinder运膜气缸 | 亚德客AirTAC | 台湾TAIWAN |
9 | Solid state relay 固态继电器 | 阳明GOTEK | 台湾TAIWAN |
10 | Intermediate state relay中间继电器 | 欧姆龙OMRON | 日本JAPAN |
11 | Photoelectric eye 电眼 | 百德利BAIDELI | 台湾TAIWAN |
12 | Power 电源 | 铭纬MW | 台湾TAIWAN |
13 | Winding motor放膜直角电机 | 台邦GPG | 台湾 |
14 | Control temperature温控表 | AISET亚泰 | 上海SHANG HAI |
15 | Access switch接近开关 | 阳明GOTEK | 台湾TAIWAN |
16 | Printer code打码机 | DS | 浙江CHIAN |
17 | 电磁阀Electromagnetic valve | 金器Mindman | 台湾TAIWAN |
18 | 急停、接触器等 | 施耐德 |
2、Z type bucket elevator
Features
It’ s suitable use in delivery the grain, food, food stuff etc.
Conveyor with the character of large quantity. NO crash material. High Lifting etc.
Lifting height:3.3-10m(according to customer’s requires)
It can be made both stainless steel and plastic painted .The contact parts of food grade plastic.
3、product conveyor
