Jinan T packing machinery co.,ltd
A microcomputer controlled by PLC and settings to complete the synchronizationall , bags long, positioning, automatic tracking of the cursor, automatic fault diagnosis and display on screen.
Set bag, and materials measurement, filling, inflatable, count, Seal, a code, feeding, limited downtime, set-cut package, such as a series of actions are done automatically.
Apply to food, spices, pharmaceutical (such as: sugar , Expanded, potato chips, nuts, Guoba, pancake, and other materials) packaging.
Polyester / polyethylene, nylon composite film, enhanced composite films, BOPP, etc. Refeng packaging materials.

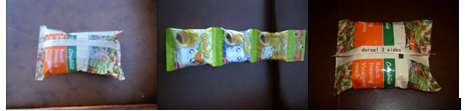

Pouch/Plastic bag sample
Main performance
1.The machine can complete the whole actions like bag-making,measuring,filling counting, date printing(need to equip with the date printer),cutting and finished production output.
2.Sealing form is back sealing (pillow type),the up and below sealing size can make as customer’s request.
3. PLC display with Chinese, English, Russia, Arabic language to choose , friendly interface, automatic measurement of bag length,with last working state memory, fault display. Key part of the computer use induction method, completely sealed, waterproof, anti-corrosion, anti-dust, life for decades!!
4.Auto display the packing speed,the customer can use the auto cutting device according to there request,the cutting quantity is optional from 0~99pcs.
5.Can set the photo sensor, if there is no material at the hopper or ending of packing film,the machine will stop automatically, thus can avoid to waste the packing film.
Main advantage
1.The horizontal sealing guiding shaft of machine is processed by special refining bearing steel.super water-resistant,high precision,low noise and easy to maintain.
2. Advanced control circuit design for vibrating material-feeding, the vibration force size (from 0 - 9 file) is adjustable. Noise is significantly less than ordinary models. and the Material feeding is even better.
Model: DP-1520
Packing material | Lamination film like OPP/CPP、OPP/CE、MST/PE、PET/PE etc. |
Film maxdiameter | 300mm |
Bag-making size | 30-200(L)mm,40-150(W)mm |
Thickness of packing film | 0.04-0.08mm |
Measuring range | 20-300ml |
Packing speed | 40-90Bags/min |
Overall size | 980(L)X680(W)X1650(H)mm |
The suitable packing products | Ban Langen, cereals, solid drinks, puffing, melon seeds, salt, chocolate beans, hot cooked food and other materials |
Model: DP-1530
Packing material | Lamination material like OPP/CPP、OPP/CE、MST/PE、PET/PE etc. |
Film maxdiameter | 300mm |
Bag-making size | 30-300(L)mm,30-150(W)mm |
Thickness of packing film | 0.04-0.08mm |
Measuring range | 20-300ml |
Packing speed | 40-90Bags/min |
Overall size | 980(L)*680(W)*2250(H)mm |
The suitable packing products | Ban Langen, cereals, solid drinks, puffing, melon seeds, salt, chocolate beans, hot cooked food and other materials |
Model: DP-2030
Packing material | Lamination film like OPP/CPP、OPP/CE、MST/PE、PET/PE etc. |
Film maxdiameter | 400mm |
Bag-making size | 30-300(L)mm,40-190(W)mm |
Thickness of packing film | 0.04-0.08mm |
Measuring range | 20-500ml |
Packing speed | 30-60Bags/min |
Overall size | 980(L)*680(W)*1950(H)mm |
The suitable packing products | Ban Langen, cereals, solid drinks, puffing, melon seeds, salt, chocolate beans, hot cooked food and other materials |

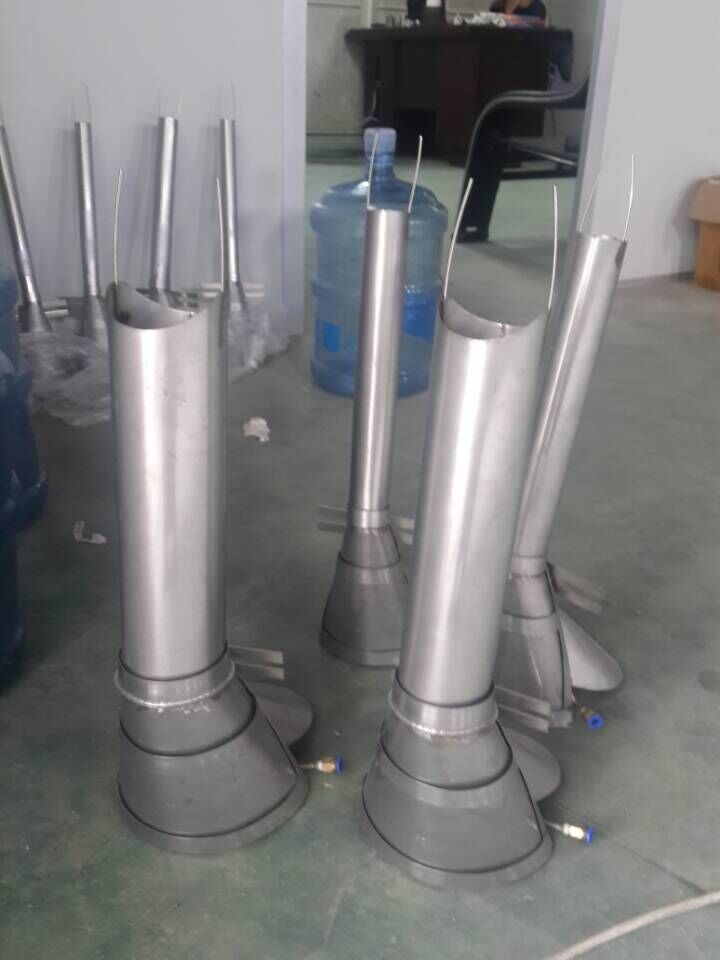

Formers for different size plastic bags
