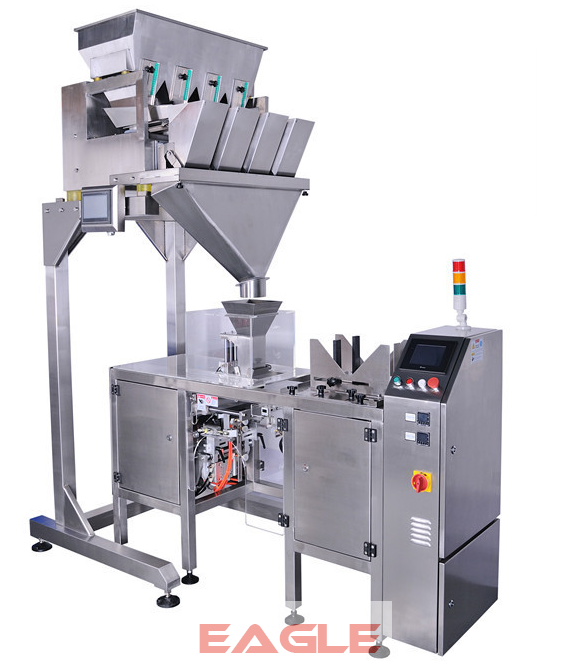

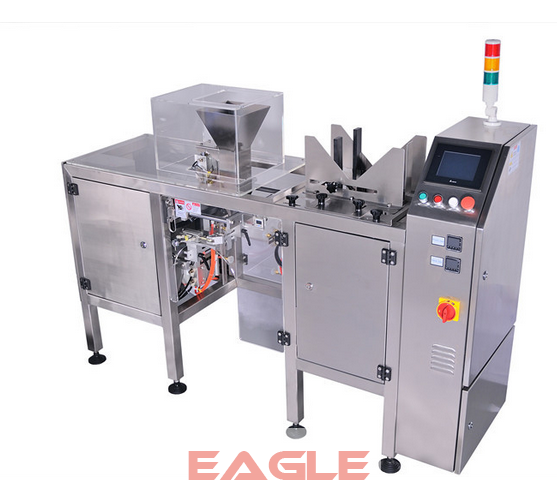

Premade bag packing machine

Bag type

3 side sealing sachet/ stand up bag(doypack bag) / zipper bag /spout bag

speed

6-15 bags / min

Bag size

Bag width: 90mm ≤ W ≤ 300 mm

Bag length: 100mm ≤ length ≤ 300 mm

Power supply

220V / 50HZ / 60Hz, single phase / 20 A;

Air consumption

0.5m3 / min  0.65Mpa;

Machine dimension

L: 1750mm * W:510mm *H: 1300mm

Mechanical building

SS304 3mm thick chassis / bearing / connecting parts;

Electrical configuration

PLC                             Mitsubishi from Japan

PID temperature control              Omron

5.7 inch color touch screen;           Delta from Taiwan

Pneumatic configuration

Pneumatic  component              AirTAC from Taiwan

vacuum generator                   PIAB from Sweden
