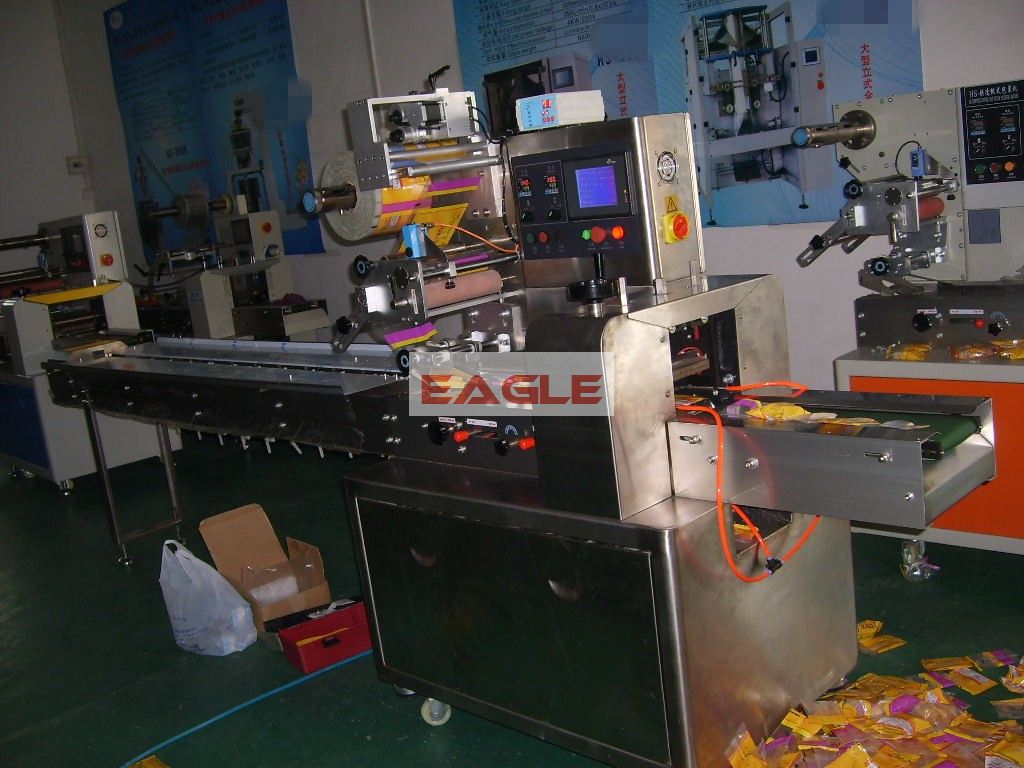

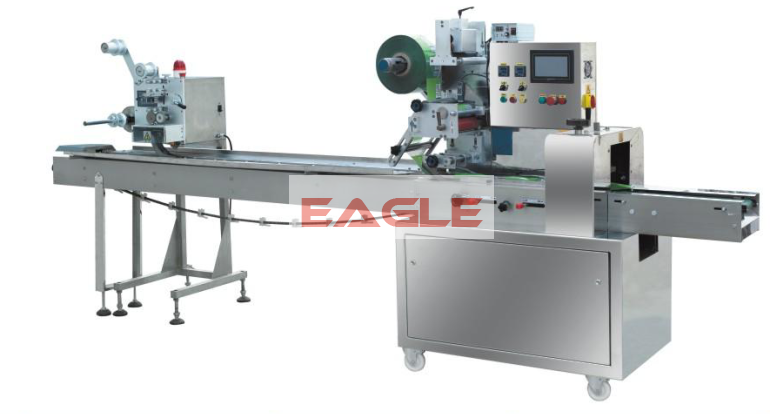

The horizontal packing machine
Packaging various kinds of regular objects like biscuits. Bread. egg roll, instant noodle. moon cake. medicine. hardware. industrial parts , paper boxes , plates . etc .
1、 Main performance and structural features
（1）. The advanced and quick servo design of the bag saves time and time. Automatic adjustment of bag length, automatic shutdown without material.
（2）. The whole machine has reasonable design, stable performance, PLC full computer control and simple operation. Fault self diagnosis function, and the fault display is clear at a glance.
（3）. High precision photoelectric tracking system, digital input, accurate sealing and cutting position. Positioning shutdown function, no sticking knife and no waste of film rolling.
Ⅱ、Applications
Packaging various kinds of regular objects like biscuits. Bread. egg roll, instant noodle. moon cake. medicine. hardware. industrial parts , paper boxes , plates . etc .
Specification
Type | HS-350 |
Film width | 90-320mm |
Bag-making length | 65-190 或 120-280mm |
Bag-making width | 30-110mm |
Production height | Max.40mm |
Film roll diameter | Max.250mm |
Packing material | OPP、PE、PVC、OPP/CPP、KOP/CPP、ALU-FOIL |
Thickness of film | 0.03-0.07mm |
Packaging speed | 40-180bag/min |
Power specification | 3.4KW /220V, 50/60Hz, |
Machine Dimension | (L)3770 x (W)640 x (H) 156mm |
Machine weight | 500kg |
Optional device | Printer，Air-filling device， Tidier，alcohol spray device |
