Jinan Halo Pallet stretch shrink film wrapper machine with scale | plastic wrapping machine

Video

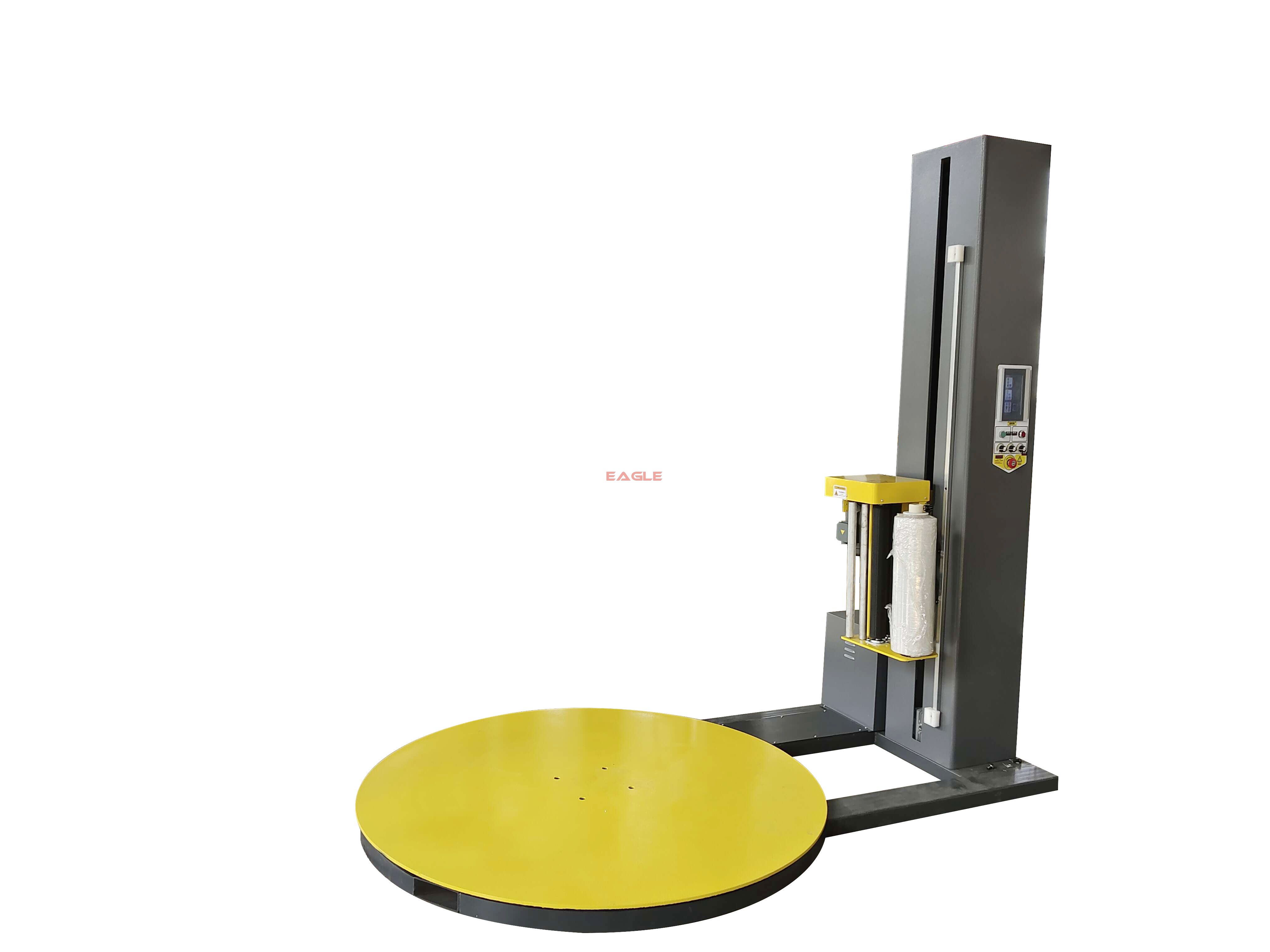

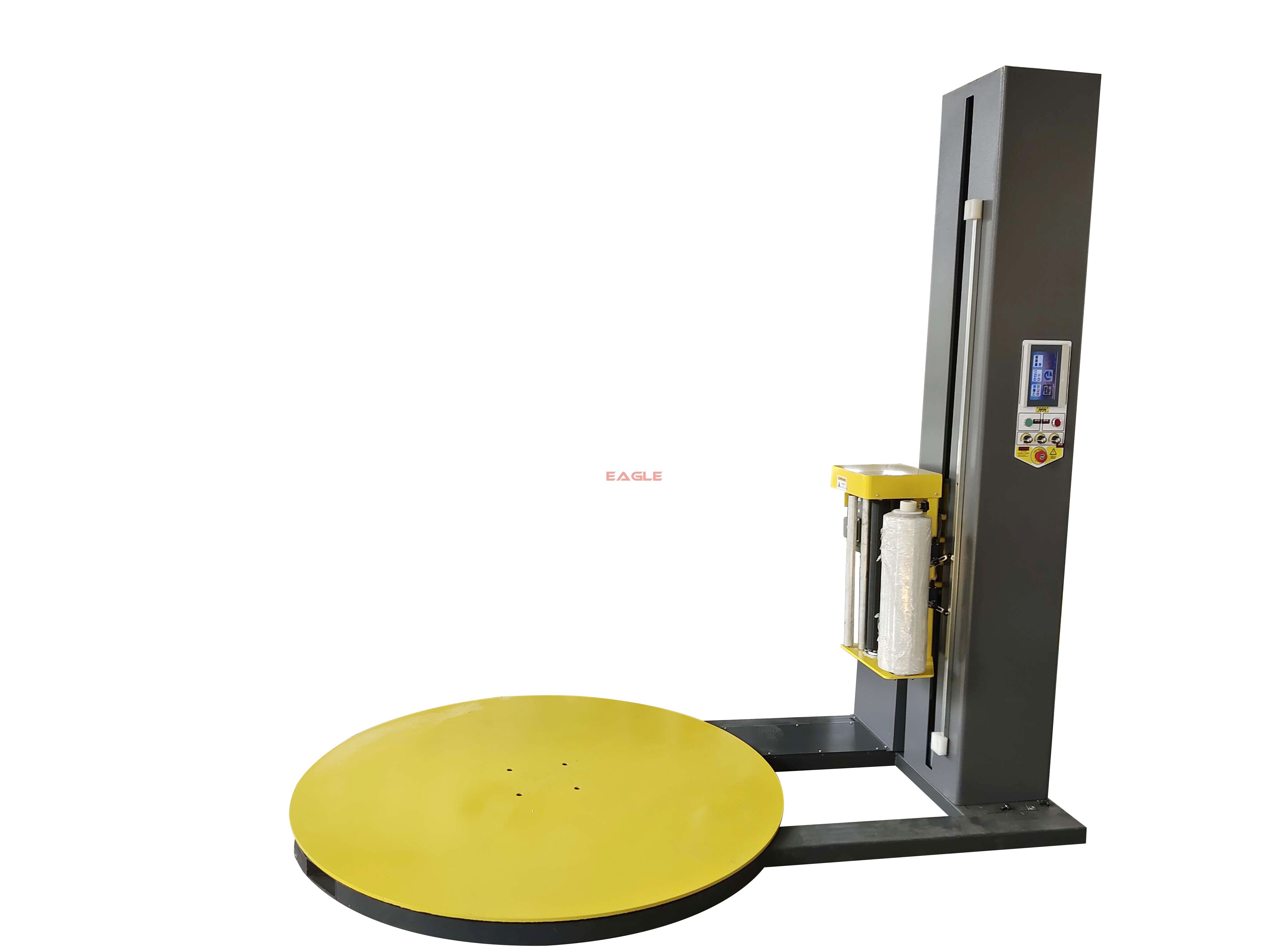

Pre-stretch Wrapping Machine, Model: LJ-TP1650F, is a newly developed single pallet wrapping machine based on the current market demand, suitable for pallet palletizing followed by wrapping film wrapped goods, the use of Jinan T packing production of automatic weighing heavy wrapping packaging machine can play a positive role in preventing products from being packaged loose, improve packaging efficiency, improve the packaging effect and increase the added value of products. This model can realize the automatic display of cargo weight after placing the weight of the goods on the turntable.

Technical parameters:

Wrapping specifications  (500-1200)mm*(500-1200)mm(L*W)

Packing height(max) 2000mm/2400mm/2800mm

Packing efficiency 20-40 trays/hour

Speed of rotary table 0-12rpm Variable speed adjustable

Turntable diameter 1650/1800mm/2000mm/2200mm/2400mm/2600mm

Height of rotary table 85mm(Chassis support: square tube specification 100*120*4 reinforcement plate thickness 10mm)

Drive chain: 12A)

Turntable load capacity (max)  2000kg

Film frame system Pre-stretched film frame, pre-stretched up to 250%, automatic film feeding, frequency conversion speed control

Lifting column Lifting speed adjustable with frequency, 10A double chain drive method

Control system PLC control, adjustable number of layers and times of winding, automatic reset of rotary table, automatic sensing of cargo height

Column box body Wall thickness 1.5mm; upper and lower plate 6mm; inner corner reinforcement plate 6mm; width 400mm

Weight of the whole machine(max) 650kg

Dimension 2650mm*1650mm*2485mm

Power/Voltage Turn table 0.75kw, film frame 0.35kw, column 0.37kw/AC220V
