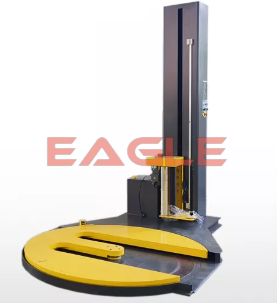

The M Type Pallet Wrapper, is a newly developed automatic wrapping machine designed to meet the current market demands. It is compatible with pallet jacks and manual forklifts, making it suitable for wrapping palletized goods after stacking. Using the wrapping machine can prevent package dispersion during wrapping, improve packaging efficiency, enhance packaging quality, and increase the added value of products.
Prevents Package Dispersion: Ensures that goods remain securely wrapped during transportation and storage.
Increases Efficiency: Automates the wrapping process, reducing labor and time compared to manual wrapping.
Enhances Packaging Quality: Provides consistent and reliable wrapping for better protection of goods.
Adds Value to Products: Improves the overall presentation and security of the packaged products.
Pallet wrapping machine specification
| Max load size(mm) | 1200 *1200 (L*W) | |||
| Max load height(mm) | 2100 | |||
| Capacity | 25- 35 Loads/hr | |||
| Turntable diameter (mm) | 1650 , 1800mm to choose | |||
| Turntable Height (mm) | 76 | |||
| Turntable weight capacity(kg) | 2000 | |||
| Turntable speed | 3-15rpm | |||
| Machine weight(kg) | 700 | |||
| Electrics | 230V 50HZ 1Phase | |||
| Power | 1.5kw | |||
| Machine dimensions (mm) | 2745(L)×1650(W)×2500(H) | |||
| Details of Features | |||||||
| Electric control panel | |||||||
| Photo-eye pallet height sensor | |||||||
| Reinforce wrap allow more wrap on same location | |||||||
| Over-wrap provide more wrap over the top of loads | |||||||
| Powered pre-stretch film carriage up to 300% (Option: 100-250%) | |||||||
| Carriage door opens for effortless roll change and thread film | |||||||
| Film delivery variable speed by separate AC Drive Motor & Separate inverter | |||||||
| Film dancer-bar control film output | |||||||
| Heavy duty double-chain carriage lift, calm and safety | |||||||
| Safety stop to avoid foot crush | |||||||
| Front & rear Forklift transportable |
