Jinan T packing machinery co.,ltd

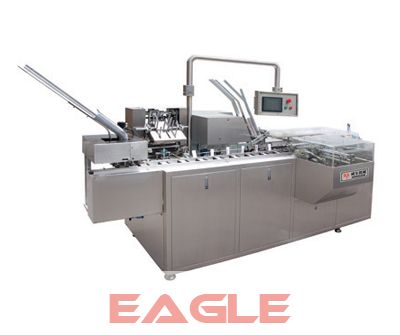

Jinan Eagle nutritional baby powder breakfast cereals corn flakes carton box packing machine
Video
We can connect the powder packing machine to the carton boxing machine via conveyors
Summarize
It is suitable for packing AL/PL blister,food type. bottle, cosmetic playing card and other related similar content compact with automatic leaflet folding, box opening and loading, batch number embossing as well as sealing tec processes. (Option hot-glue device extra)
It adopts PLC control, photoelectricity supervision to coordinate with every parts. Automatic stop and trouble display when machine running exceptional in order to solving troubles in time. This machine can be used separately, and also can connect with blister packing machines on line.
Introduction:
1. Stop automatically if incorrect position of products into carton.
3. Stop automatically if no cartons or out of leaflets continuous.
4. Easy to change to different products.
5. Protecting automatically for overloading.
6. Automatically displaying device for speed and finished products counting.
Specification
Electric power | 3Phases motor power 1.5kw |
Production capacity | Rotation speed 50-120box/min |
Volume of consumption | 120-160L/min (pressure 0.5-0.8Mpa) |
Packing material | Box requirement 250-300g/m² |
Max. Size :{L-H-W} 260-170-90mm | |
Min. Size :{L-H-W}40×20×15mm | |
leaflet | Paper requirement 60×80g/m² |
Max. Size：240×170mm | |
Min . Size：80×90mm | |
Overall dimension | 3300×11350×1650mm |
Weight | About 1.5 tons |
