Different Date coder for packing machines

Pls contact us for more machines and parts price

[email protected]  Whatsapp/Wechat/Mobile: +8613021705897 Skype: eaglefoodmachinery

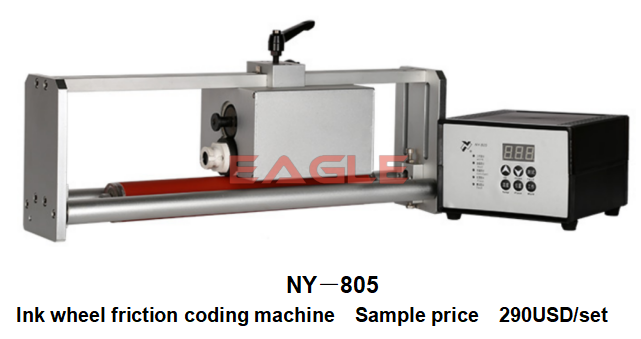

1. Ink wheel friction coding machine

 NY－805 Sample price reffence 290USD/set

Ink wheel friction coding machine

Scope of application.

Applicable to all types of pillow, vertical continuous packaging machine on the automatic printing production date, product batch number and other information signs.

Features.

1. Extracted word head, ink wheel extraction device structure is simple, the word grain, ink wheel replacement is convenient and quick.

2. Combined with the unique friction technology, using the packaging film running friction through the special clutch to drive the printing head rotation.

3. Automatic tracking of coding speed and packaging film synchronous changes to ensure the consistency of the coding position.

 Technical parameters.

Printing speed: 300 times / min

Font size: 2.5mm * 7mm * 6.8mm; 2mm* 3.4mm * 6.8mm

Power: 220W Power supply: 220V/50Hz

Mechanical size: 470mm * 130mm * 230mm

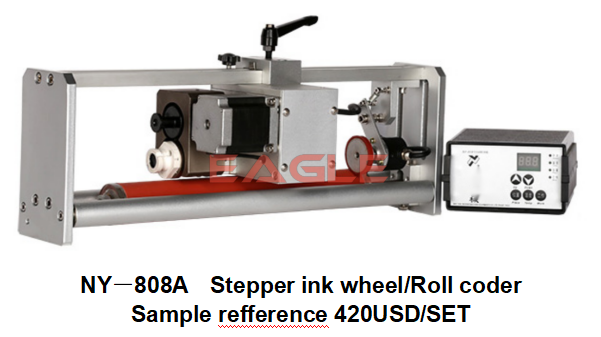

2.NY－808A  Stepper ink wheel coder  420USD/SET

Scope of application.

Applicable to all types of pillow, vertical continuous packaging machine on the automatic printing of production date, product batch number and other information signs.

Features.

1、Adopt stepping motor drive, can automatically track according to the packing machine speed, and synchronize with the running speed of the packing machine.

2. easy to extract the word head, a unique structure for changing the word, the word grain installation, replacement is convenient and fast.

Technical parameters.

Printing speed: 300 times / min

Font size: 2.5mm * 7.0mm * 6.8mm, 2mm *3.4mm * 6.8mm

Power: 220W

Power supply: 220V/50Hz

Mechanical size: 560mm * 195mm * 240mm
